ZA series constant voltage and current intelligent charger are designed according to battery charging curves and features constant current and voltage, the charge protection automatic uniform charge, they are designed for storage batteries of the electric power system, communication systems, railway systems, regular boat system, the electric engine for mining, electric vehicle, pallet truck, stacker (electric fork lift trucks), electric platform vehicle, electric hydraulic platform vehicle, aerial work platform, electric amusement equipment, electric boat trip, and electric ground washer, in addition, they fully consider the operation conditions of the user, they realize the fact that no adjustment, no person on duty, intelligent charge, and stop automatically after the enough charge.

 Operation
　　1 Firmly connect the output wire of the charger and the anode and cathode of the battery charged, red to anode, black to cathode. (Note：Don’t connect anode and cathode reversedly ).
　　2 After confirm the voltage of the input power supply socket, switch on the power supply of the charger and turn the switch on. Then the charger charges the battery automatically.

Notes

　　1) Input voltage: power source voltage can be changed on requests
　　2) Custom-made specifications are available
　　3) The website specifications are only for your reference, the actual specificities depends on attached specifications.

Input AC voltage

three-phase: 380V±10％, single-phase: 220V±10％

Output DC voltage

the enacted main charge voltage: 2.5—2.7V every 2V monocase, the enacted float charge voltage:  2.25--2.3V every 2V monocase

Output DC voltage

0—5A,10A,15A,20A,30A,40A,50A,60A,80A,100A,150A,200A and etc.
Generally 10％－20％ of the capability of the storage battery
or refer to the operation manual of storage battery

Battery voltage

12V, 24V,36V,48V,72V,80V,96V,110V,220V,380V,500V and etc

Uniform charge current

4--6％A of the capability of the storage battery

Voltage sampling  precision

＜1％

Current sampling  precision

＜1％

Temperature of storing and transporting environment

－40℃～80℃

Temperature of working environment

－25℃～45℃ the air environment directly near the electric components is no higher than 70℃

Relative humidity of working environment

relative humidity less than 85％

Altitude

not higher than 2500 meters

Constant-current charge using

Turn the constant-voltage adjustable potentiometer to the maximum and choose the needed current using current adjustable potentiometer to constant-current charge.

Constant-voltage using

Turn the constant-current adjustable potentiometer to the maximum and choose the needed voltage using voltage adjustable potentiometer to constant-voltage charge, the voltage of the battery rises and transfers into  constant-voltage charge, and the current is reducing gradually and transfers into floating charge.

Constant-voltage with limited current automatically charge using

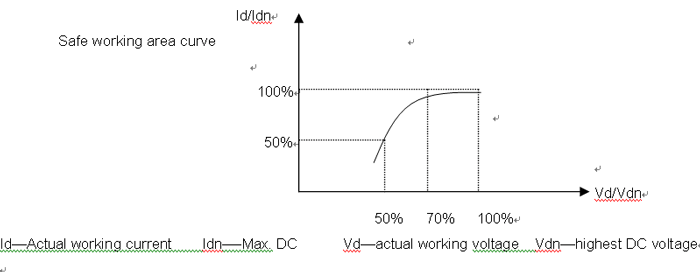

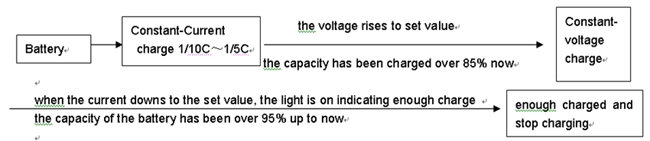

First, to enact the value of constant-voltage, the voltage of main charge is enacted as2.4V--2.60V every 2v monocase, or enacted according to the directions of the battery, (different kinds batteries have different constant-voltage enacted value). connect the battery, and adjust the current, first it is the constant-current charge, the voltage of the battery rises and transfers into  constant-voltage charge, and the current is reducing gradually and transfers into floating charge. It can be added the timer according to the requirement of the users, and the time of power off is decided by the users.

Notice of order

Please ensure the rating voltage of the charger according to the maximum series storage batteries, generally it is the number of storage batteries ×16V(the voltage of the storage battery is 12V)

Application scope

The charger can be used in the plate formation of the battery makers, and the initial charge of the battery as well as the charge of many suits of the batteries of users, such as car repair plant, power plant, the shop of storage battery, railways system, communications system and etc.

MODEL:12V(DC)

Capacity(KW)

Input voltage(AC)

Battery voltage(DC)

Suitable battery capacity(AH)

10A/12V

0.25

Single-phase

220V

12V

50-80

15A/12V

0.4

12V

80-100

20A/12V

0.5

12V

100-150

30A/12V

0.6

12V

150-210

40A/12V

1

12V

210-280

50A/12V

1.5

12V

280-320

100A/12V

2.5

12V

600-800

200A/12V

5

3-Phase 380V

12V

1200-1400

MODEL:24V(DC)

Capacity(KW)

Input voltage(AC)

Battery voltage(DC)

Suitable battery capacity(AH)

10A/24V

0.5

Single-phase

220V

24V

50-80

15A/24V

0.8

24V

80-100

20A/24V

1

24V

100-150

30A/24V

1.5

24V

150-210

40A/24V

2

24V

210-280

50A/24V

2.5

24V

280-320

60A/24V

3

24V

320-400

80A/24V

4

24V

400-600

100A/24V

5

24V

600-800

100A/24V

5

3-Phase 380V

24V

600-800

200A/24V

10

24V

1200-1400

MODEL:36V(DC)

Capacity(KW)

Input voltage(AC)

Battery voltage(DC)

Suitable battery capacity(AH)

10A/36V

0.8

Single-phase

220V

36V

50-80

20A/36V

1.5

36V

100-150

30A/36V

2

36V

150-210

40A/36V

3

36V

210-280

50A/36V

4

36V

280-320

60A/36V

5

36V

320-400

80A/36V

6

36V

400-600

100A/36V

8

3-Phase 380V

36V

600-800

200A/36V

15

36V

1200-1400

MODEL:48V(DC)

Capacity(KW)

Input voltage(AC)

Battery voltage(DC)

Suitable battery capacity(AH)

10A/48V

1

Single-phase

220V

48V

50-80

20A/48V

2

48V

100-150

30A/48V

3

48V

150-210

35A/48V

3.5

48V

180--250

40A/48V

4

48V

210-280

50A/48V

5

48V

280-320

60A/48V

6

48V

320-400

80A/48V

8

48V

400-600

100A/48V

10

48V

600-800

50A/48V

5

3-Phase 380V

48V

280-320

60 A/48V

6

48V

320-400

80 A/48V

8

48V

400-600

100A/48V

10

48V

600-800

120A/48V

12

48V

750-1000

150A/48V

15

48V

800-1200

200A/48V

20

48V

1200-1400
